Exterior-Facet Runtime Quadrature

This tutorial follows python/demo/demo_boundary_sphere_perimeter.py. It is a geometric quadrature example: the entities being cut are exterior facets of a three-dimensional background mesh, not volume cells.

The sphere cuts the left boundary face of the cube; the green patch is the negative phase on the boundary and the red curve is its perimeter.

Geometry

The background mesh covers the unit cube \(B=[0,1]^3\). A sphere centered outside the cube is represented by

\[ \phi(x)=\|x-c\|^2-r^2 . \]

The chosen center makes \(\phi=0\) intersect only the left boundary face. On that face the negative phase is a disk-like patch

\[ D=\{x\in\partial B:\phi(x)<0\}, \]

and its boundary is the curve

\[ C=\{x\in\partial B:\phi(x)=0\}. \]

Implementation Order

The demo runs in this order:

1. Parse --n, --order, --radius, --center, and optional plot flags.

2. Validate that the sphere cuts only the left exterior face.

3. Build the unit-cube tetrahedral mesh and interpolate the P1 level set.

4. Pass the exterior facet list and facet dimension to cutfemx.cut.

5. Locate full negative exterior facets and cut exterior facets.

6. Build runtime quadrature and cut meshes for "phi<0" and "phi=0".

7. Assemble the standard full-facet area, cut-facet patch area, and perimeter.

8. Compare with the exact disk area and circle perimeter, then optionally plot.

Cutting Exterior Facets

The parent entities are exterior facets, so their dimension is passed explicitly to cutfemx.cut.

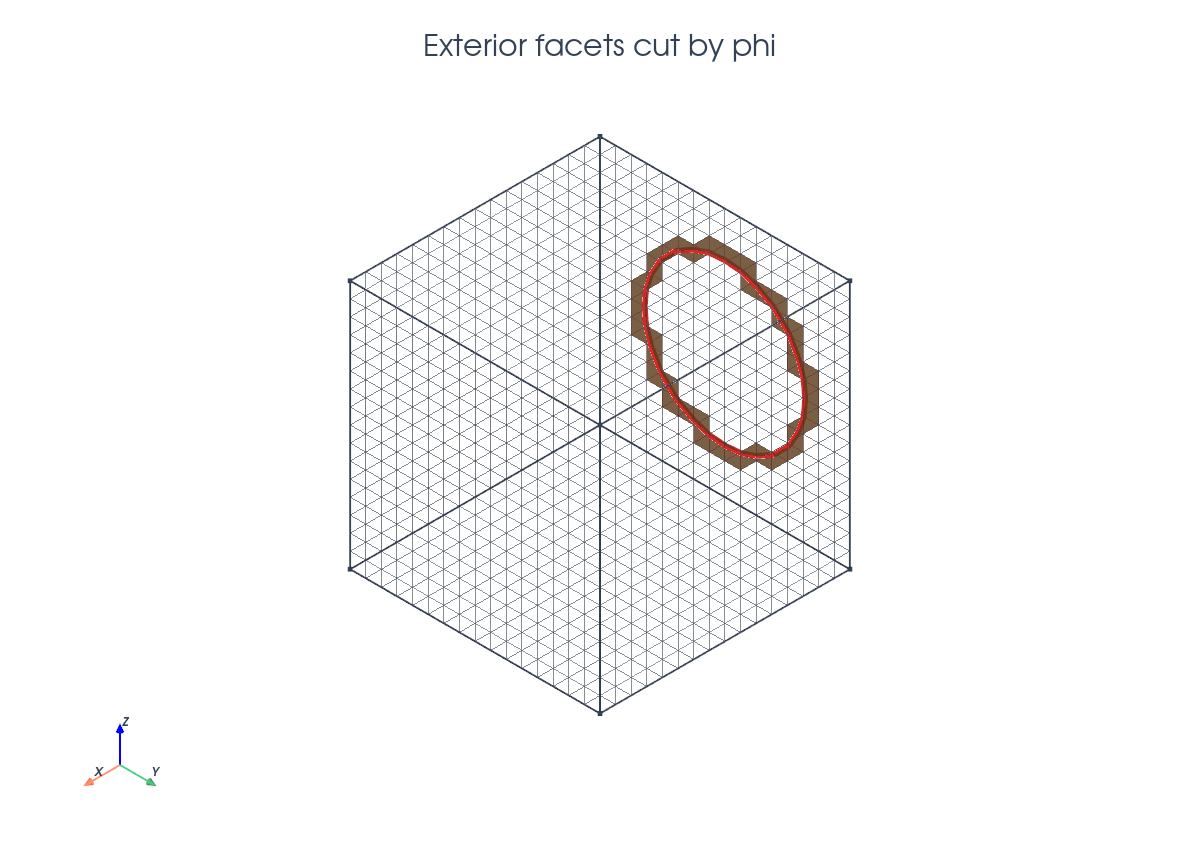

Orange facets are the exterior background facets intersected by the zero level set.

fdim = msh.topology.dim - 1
msh.topology.create_entities(fdim)
msh.topology.create_connectivity(fdim, msh.topology.dim)

exterior_facets = mesh.exterior_facet_indices(msh.topology)
cut_data = cutfemx.cut(phi, exterior_facets, fdim)

The selectors keep their usual meaning, but now they act on boundary facets:

negative_facets = cutfemx.locate_entities(cut_data, "phi<0")
cut_facets = cutfemx.locate_entities(cut_data, "phi=0")

Patch And Curve Quadrature

CutFEMx builds one runtime quadrature rule for the cut part of the surface patch and one for the induced curve. Fully negative exterior facets are not runtime rules; the demo integrates them with an ordinary meshtags-based ds measure and then adds the cut-facet contribution.

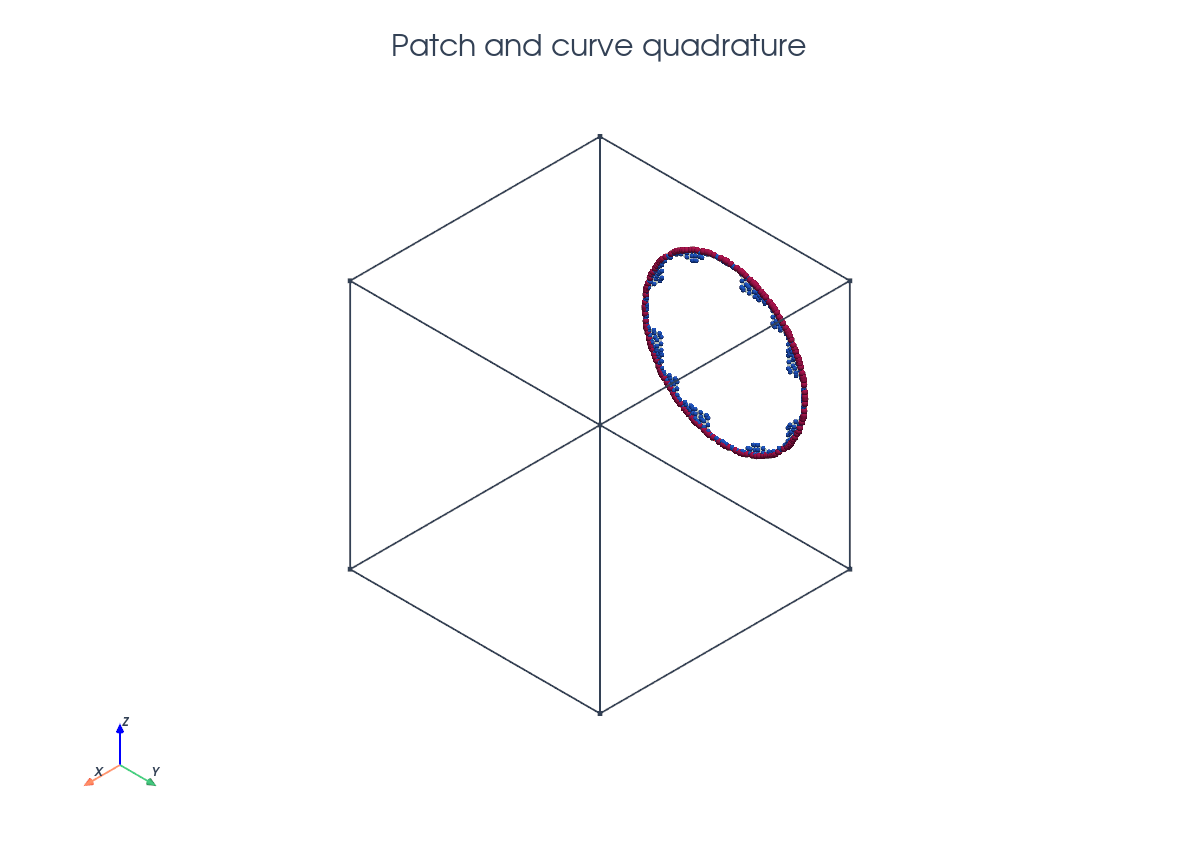

Blue points integrate the boundary patch area; magenta points integrate the perimeter curve.

patch_rules = cutfemx.runtime_quadrature(cut_data, "phi<0", order)
curve_rules = cutfemx.runtime_quadrature(cut_data, "phi=0", order)
patch_mesh = cutfemx.create_cut_mesh(cut_data, "phi<0", mode="cut_only")
curve_mesh = cutfemx.create_cut_mesh(cut_data, "phi=0", mode="cut_only")

one = fem.Constant(msh, np.float64(1.0))
standard_tags = mesh.meshtags(
    msh, fdim, negative_facets, np.full(negative_facets.size, 1, dtype=np.int32)
)
standard_area = _assemble_scalar(
    one * ufl.Measure("ds", domain=msh, subdomain_data=standard_tags)(1)
)
ds_patch = ufl.Measure("ds", domain=msh, subdomain_id=2,
                       subdomain_data=patch_rules)
ds_curve = ufl.Measure("ds", domain=msh, subdomain_id=3,
                       subdomain_data=curve_rules)

The assembled quantities are

\[ |D|=\int_{D_\mathrm{full}}1\,ds+\int_{D_\mathrm{cut}}1\,ds,\qquad |C|=\int_C 1\,d\ell . \]

Only \(D_\mathrm{cut}\) uses runtime quadrature. The patch weights have area dimension, while the curve weights have length dimension.

Exact Check

For the left face \(x=0\), the curve radius is

\[ \rho=\sqrt{r^2-c_x^2}. \]

The exact values are therefore

\[ |C|=2\pi\rho,\qquad |D|=\pi\rho^2. \]

The demo reports these exact values beside the assembled runtime values, making this a compact verification of exterior-facet and codimension-two quadrature.

Run The Demo

python python/demo/demo_boundary_sphere_perimeter.py

Full Source

The complete source remains available in the repository: python/demo/demo_boundary_sphere_perimeter.py.
